How do I fix a Schneider XMAZL001 bracket in the XMP pressure switch flange?

Company: Schneider Telemecanique

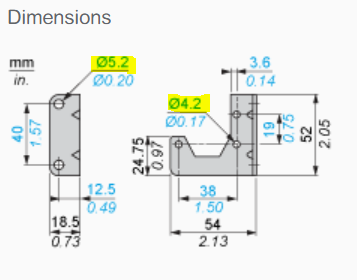

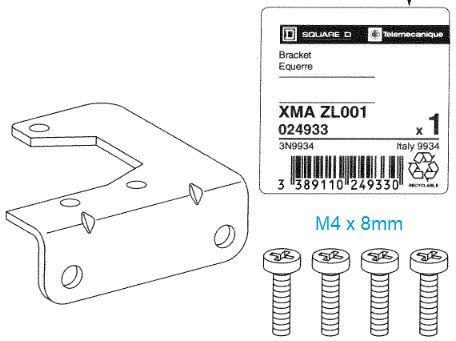

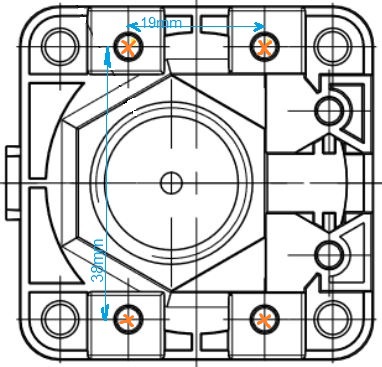

The attached pictures show the XMAZL001 dimensions, the four possible threaded holes to fix the bracket, and the back of the XMP switch flange. It’s supplied with four screws – you only need three to fix it.
